WHOLE-HOUSE SYSTEMS

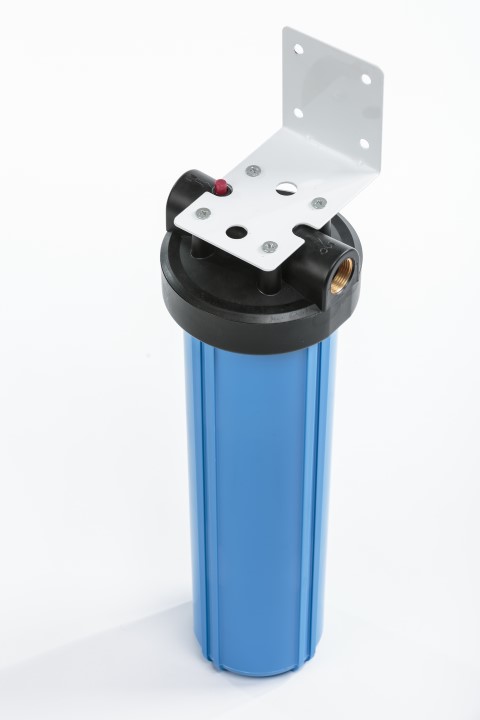

Big Blue Water Filter Housings are ideal for the removal of a wide range of contaminates. The 5-10-micron sediment and carbon filters used in this system can remove sediment, chlorine, pesticides, herbicides, organics, MTBE, and THM. The added GAC filter ensures that tastes, odors, and chemicals are removed that may have gotten through the carbon block filter due to high contaminate levels. It also removes most other chemicals, tastes, and odors, and is an excellent system for general filtration. The three-canister system provides cleaner, safer water without electricity or wastewater. These 20" high flow "Big Blue" filters (larger 4.5" diameter) provide even more surface area and fewer flow restrictions than standard-sized filters (2.5" diameter) or 10" Big Blue systems, allowing for even higher service flow rates. Big Blue filter housings offer the versatility to meet all your large-capacity filtration needs, including high-flow and heavy sediment applications. The extra-large housing allows for greater cartridge capacity for high-flow rate applications. Reinforced polypropylene housings have excellent chemical resistance and are ideal for many residential, commercial, and industrial applications.
As an option, we offer Stainless Steel housings as well.
PWT-SINGLE BIG BLUE-20: WHOLE-HOUSE FILTER- 1 Stage
Option 1: Mechanical Filtration
5.0 micron Pre-Filter
Option 2: Carbon Adsorption
10.0 micron solid activated Carbon-Block
Dimensions: 7"D x 27"H (plus by-pass piping)
PWT Water Treatment/Purification Application Chart
| Removes or Reduces | Option 1 | Option 2 |
| Particulates (Dirt, Sediment, Rust) | Y | Y¹ |
| Tastes and Odors | Y | |
| Chlorine and Chloramines | Y | |
| Pesticides, Herbicides (DDT, DBCP, etc) | Y | |
| Chemicals (THM's, TCE, PCB's, etc) | Y |
¹ Removes about 20% of sediments
Superior System Features
- Unlimited supply of water
- All faucets receive pure water
- High-Flow capacity
- All appliances: ice-maker, ice water dispenser, instant-hot receive pure water
- 1 year limited warranty
Note: Household water pressure should be checked. If pressure is HIGH (over 80psi), a whole-house
pressure regulator valve (PRV) is recommended. Install with a licensed plumber.
PWT-DOUBLE BIG BLUE-20: WHOLE-HOUSE CARBON SYSTEM- 2 Stage System
TWO OF THE MOST EFFECTIVE WATER TREATMENT TECHNOLOGIES:
Stage 1: Mechanical Filtration
5.0 micron Pre-Filter
Stage 2: Carbon Adsorpsion
10.0 micron solid activated Carbon-Block
Dimensions: 15"W x 7"D x 27"H (plus by-pass piping)
PWT Water Treatment/Purification Application Chart
| Removes or Reduces | Stage 1 | Stage 2 |
| Particulates (Dirt, Sediment, Rust) | Y | Y ¹ |
| Tastes and Odors | Y | |
| Chlorine and Chloramines | Y | |
| Pesticides, Herbicides (DDT, DBCP, etc) | Y | |
| Chemicals (THM's, TCE, PCB's, etc) | Y |
¹ Removes about 20% of sediments
Superior System Features
- Unlimited supply of water
- All faucets receive pure water
- High-Flow capacity
- All appliances: ice-maker, ice water dispenser, instant-hot receive pure water
- 1 year limited warranty
Note: Household water pressure should be checked. If pressure is HIGH (over 80psi), a whole-house
pressure regulator valve (PRV) is recommended. Install with a licensed plumber.
PWT-TRIPLE BIG BLUE-20: WHOLE-HOUSE CARBON SYSTEM- 3 Stage System
THREE
OF THE MOST EFFECTIVE WATER TREATMENT TECHNOLOGIES:
Stage 1: Mechanical Filtration
5.0 micron Pre-Filter
Stage 2: Carbon Adsorption
10.0 micron solid activated Carbon Block matrix
Stage 3: Chemical Removal Filter
315 cubic inches of granular activated carbon;
prolonged contact adsorption for the removal of
extra high levels of chemicals, chlorine, and chloramines
Dimensions: 24"W x 7"D x 27"H (plus by-pass piping)
PWT Water Treatment/Purification Application Chart
| Removes or Reduces | Stage 1 | Stage 2 | Stage 3 |
| Particulates (Dirt, Sediment, Rust) | Y | Y¹ | YY¹ |
| Tastes and Odors | Y | YY | |
| Chlorine and Chloramines | Y | YY | |
| Pesticides, Herbicides (DDT, DBCP,etc) | Y | YY | |
| Chemicals (THM's, TCE, PCB's, etc) | Y | YY |
¹ Removes about 20% of sediments
Superior System Features
- Unlimited supply of water
- All faucets receive pure water
- High-Flow capacity
- All appliances: ice-maker, ice water dispenser, instant-hot receive pure water
- 1 year limited warranty
Note: Household water pressure should be checked. If pressure is HIGH (over 80psi), a whole-house
pressure regulator valve (PRV) is recommended. Install with a licensed plumber.
WHOLE-HOUSE SEDIMENT FILTERS
Both municipal (City) water supplies and individual well water supplies can contain different
amounts and sizes of sediment. Sediment can clog water appliances; hot water heaters,
washing machines, dishwashers, etc., and faucet aerators.
PWT-STAINLESS STEEL-20:
Single Sediment Filter 5.0 microfilter cartridge
Dimensions: 7"D x 27"H plus by-pass piping
Note: Other filter cartridges are also available: 100, 50, 5, and 1.0 micron sizes. Sediment can vary or change from well to well or season to season, (drought, higher than average rainfall, etc.) it may be necessary to adjust the size of the micron rating and replacement cycle. Household water pressure should be checked, if pressure is high (over 80psi), a whole-house pressure regulator valve (PRV) is recommended. Install with a licensed plumber.
PWT-TRIPLE STAINLESS STEEL-20:
Sediment Filter 5.0 micron pre-filter, 5.0 micron carbon filter, granular activated carbon filter
Dimensions: 24"W x 7"D x 27"H plus by-pass piping
Note: Other filter cartridges are also available: 100, 50, 5, and 1.0 micron sizes. Sediment can vary or change from well to well or season to season, (drought, higher than average rainfall, etc.) it may be necessary to adjust the size of the micron rating and replacement cycle. Household water pressure should be checked, if pressure is high (over 80psi), a whole-house pressure regulator valve (PRV) is recommended. Install with a licensed plumber.
WATER SOFTENERS (Conditioners)
SOLUTIONS: SOFT WATER
Protection - Your skin and complexion from hard water impurities that can cause dry skin;
shave without irritation, keep hair and skin healthy.
Spot-Free - Dishes, glasses, and silverware will be crystal clear.
Eliminate - Bathtub ring; keep tile, porcelain, and chrome surfaces free of spots, streaks, and stains;
cleaning tasks are made easier.
Prevent - Rock-like hard water scum formations in water-using appliances, reduces plumbing repair costs.
BENEFITS OF SOFT WATER: COST SAVINGS $
Save Soap - Soft water washes better with much less soap.
Save Appliances - All water appliances last longer and work more efficiently.
Clothing - Laundry washed in SOFT water will be brighter, cleaner, more
comfortable, and will last longer.
Save Energy - Hot water heating costs will be reduced.

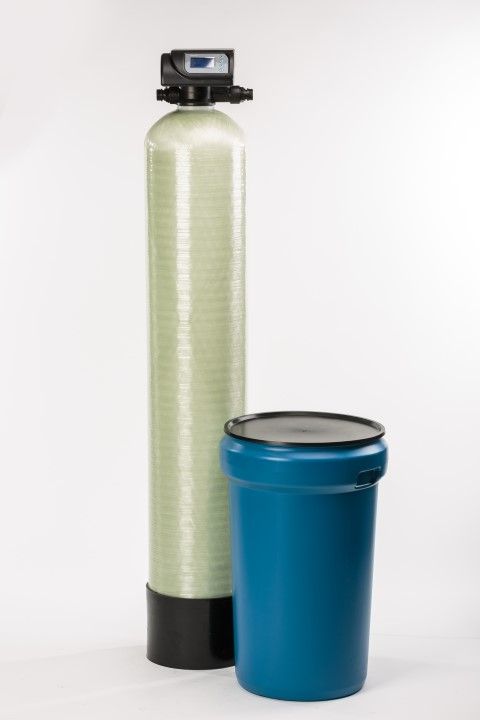

THE COST SAVINGS OF A PWT WATER SOFTENER- PAYS FOR ITSELF
VALIDATED EQUIPMENT; TWO TANK SYSTEM
Computerized Control Valve: Autotrol 268 /w 460i Timer
Demand regeneration, high efficiency, save water, and regenerative (Salt or Potassium KCL).
Durable, corrosion-resistant, Noryl plastic- ensuring long life.
Duraflow valve disc technology provides a frictionless seal for long service life.
Uses less than $2.00 of electricity per year.
Fiberglass Mineral Tank - 100% corrosion proof, NSF Approved.
High-Capacity Resin - Uniform bead size, FDA Approved
Distributor - Full 1" Diameter
Salt Tank - Corrosion proof reservoir with molded cover
- Brine-Safety overflow protection
- Air-Check system
Note:
Household water pressure should be checked, if pressure is HIGH (over 80psi), a whole-house
pressure regulator valve (PRV), is recommended. Install with a licensed plumber.

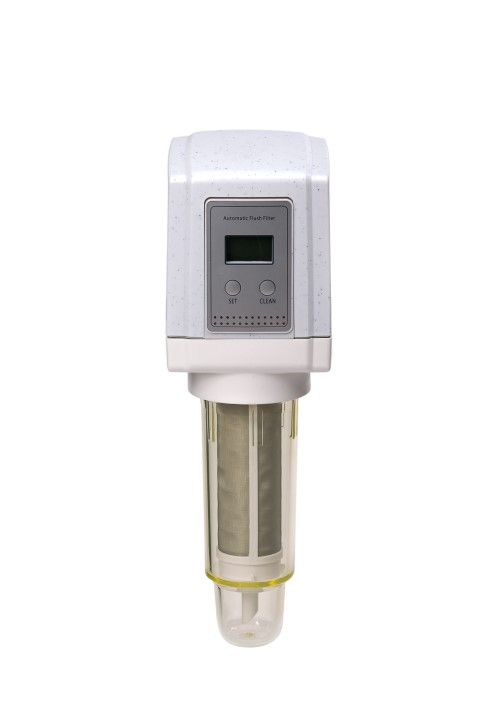

NEW WATER SOFTENERS (Conditioners) Low maintenance. (No salt needed)
The amazing smart and compact unit can improve taste, eliminate odors and prevent scale.
Smart conditioner.

- Easy to install
- Easy to maintain
- No loss in water pressure
- No monthly maintenance fees
- No bags of salt to buy or haul
- Gives you softer skin and hair
- Protect your pipes
- Prolongs the life of water appliances
Past generation water softeners remove the calcium/magnesium and replace them with sodium ions, adding unhealthy salt to your drinking water. The smart conditioner has a unique cartridge that changes the compositions of the minerals, so that they are still there and healthy for you, without that limescale build-up. There is no bacterial growth inside the smart conditioner. Special filtration and separation technology ensures that all precipitates found in the water are captured at the bottom of the filter cap so that there is no loss in water pressure.
The smart conditioner will backwash itself automatically every 7 days.

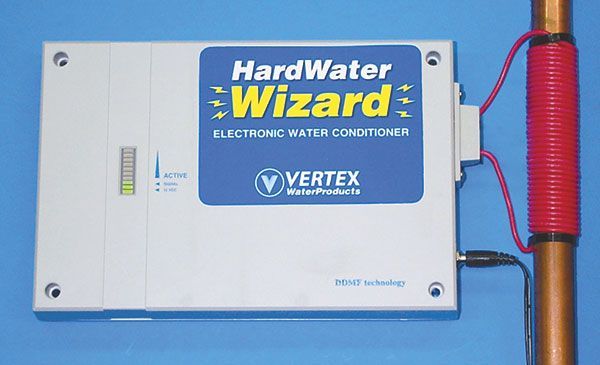

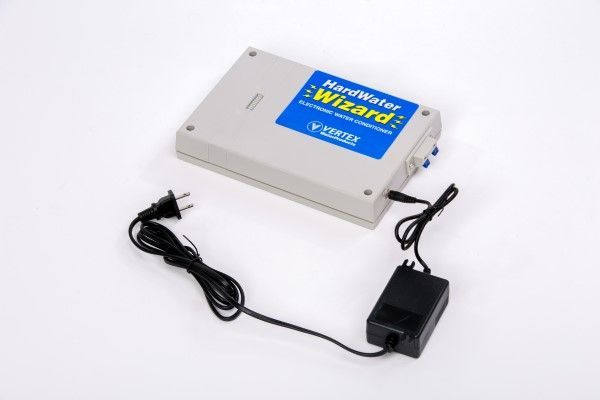

ELECTRONIC WATER CONDITIONER
Hard water Wizard is an excellent choice for homeowners who want soft water but do not want the salt contamination or maintenance effort and expense for ion exchange softeners. This is a great way to soften (condition) water up to 125 grains. It also uses less than 10 watts of electricity.
Hard water Wizard will work on plastic, copper, and steel pipes 2 years warranty.
It changes the hard water molecules to soft crystals. Treated water feels silky smooth. It also removes the existing scale.
- No salt or chemicals are needed.
- No maintenance.
- Removes existing scale in 90 days.
- No clogged showerheads, coffee pots, or dishwashers.
- Takes very little space.
Dimensions: 10" x 6" x 1.5"
Price $795
no maintenance needed

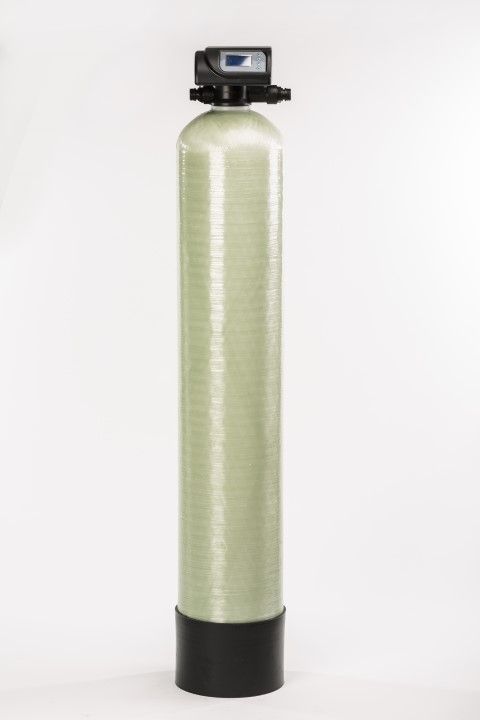

NEUTRALIZING FILTER (LOW Ph)- CAL-40,000
Acid neutralizer filter raises Ph to eliminate household plumbing corrosion and leaks, which can be expensive to repair.
It also protects the family from ingesting heavy metals (lead, copper, etc.) in the plumbing system.
VALIDATED EQUIPMENT
Control Valve-Durable corrosive resistant Noryl Plastic, ensuring long life: DuraFlo-
Autotrol 168 Valve:Valve disc technology provides a frictionless seal for long service life.
Fiberglass Mineral Tank: -100% corrosion proof, NSF approved w/ easy to refill dome plug.
Media: -Calcite for moderately low PH, and Corosex for extremely low Ph.
Distributor: -Full "1" diameter.
Dimensions: 10" Diameter x 62"H (plus by-pass piping)
WHOLE-HOUSE FILTRATION SYSTEMS
The Whole House System (WHS) perfectly protects your family from the harmful effects of sediment matter that frequently appears in the untreated well/municipal water. To decrease the amount of sediment matter and improve the organoleptic characteristics of the water (color, smell, and taste) the WHS uses the best granular activated carbon available today.
The WHS purifying system used by PWT is characterized by the US Environmental Protection Agency as the best suitable technology for the removal of sediments and chlorine from the water.
Options:
- Chemicals (including PCB, trichloroethylene, and other toxins)
- Radon
- Fluoride
- Chloramine
- Iron and manganese
- Acidic water (low pH)
- Sulfur (rotten egg smell)
All systems are equipped with a backwash manual/digital head.
An air injection technology allows for a pocket of air to be compressed at the top of the tank allowing the water to flow through the pocket of air and the iron to be oxidized, meaning it falls out of solution and allows the filter bed to remove the contaminate. This gives you clean iron-free water.
